Automatic Tool Chargers
|
 |
|
|
|
|
|
| 4 / 8 / 12 Tool ATC’s | Non Arm Type Simple Construction | Ultra Low Cost Easy Maintenance | Minimum Parts Maximum Reliability & Uptime | Column Top Mounted or Machine Mounted Moving Column Type | Available for BT-30, 40, 50 , HSK-50, 63 Tool Holders | Tool to Tool Change Time 7 secs. | Suitable For SPM’s , VMC & HMC |
|

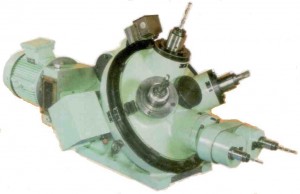

Rotary Tool Turrets
|
|
|
|
| 4 / 8 Position Tool Turrets | Rotary Indexing & Location using Hirth Couplings | Live Spindles Thru Single Power Drive | Multispindle 2 or 3 Tool Attachments at each position | Rigid Casting Stress Relieved structure | Simple Construction & Easy Maintenance | Suitable for SPM’s & Horizontal or Vertical Drill Tap Centers |
|
Spindle Units
|
|
|
|
| BT-30, 40, 50 , HSK-50, 63 Spindle Tapers | Case Hardened & Ground Spindles | Casting & Stress Relieved Housings | Supported by Precision Angular Contact Bearings | Tool Manual Clamping & Hydraulic Clamping Options | Timer Belt & Pulley Drive & Standard Gearbox Drive Optional | No Maintenance High Reliability |
|
Hydraulic Power Pack
|
|
|
|
| 50 / 100 / 150 / 200 Litre Standard Power Packs | Customised for different tank sizes & varying stations | Gear Pumps, Vane Pumps & Variable Vane Pumps | Submersed Pumps Vertical Drive & External Pumpp Horizontal Drives | Solenoid Valves, Flow Control Valves, Pressure Relief & Reducing Valves, Pressure Switches, Flow Switches, Multi Station Manifolds, Pressure & Level Gauge with Pressure & Return Line Filters | Air Type & Water Type Heat Exchangers, Oil Chillers |
|
