GEAR OPERATIONS

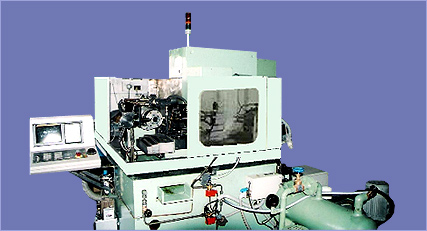

  2 AXIS CNC GEAR TOOTH ROOT DRILLING MACHINE




CUSTOMER Mahindra & Mahindra,Mumbai
YEAR 2003 – 2004
COMPONENT Drive Gear Shaft
OPERATION Drilling 4 holes of Ø 1.8 at the root between 2 teeth of Gear.
TOOL

HSS Drill

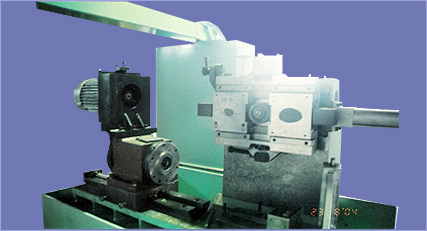

  GEAR CONE SUPERFINISHING MACHINE




CUSTOMER Mahindra & Mahindra,Mumbai
YEAR 2002 – 2003
COMPONENT Synchro Gear
OPERATION Superfinishing of Conical Bore of Gear.
TOOL

Abrasive Superfinishing Stone


Surface Finish of 0.10 Ra.
