CRANKSHAFT GEAR & FLANGE END OPERATION MACHINE

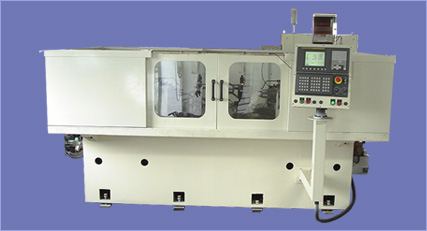

  4 AXIS CNC CRANKSHAFT RECENTERING MACHINE




CUSTOMER Mahindra Steel & Automation Ltd., Pune
YEAR 2006 – 2007
COMPONENT Crankshaft
OPERATION Crankshaft Runout / Axis Shift - Auto Checking, & Recentering Accordingly for Compensation of Runout without Straightening the component.
TOOL

Recentering Cutter

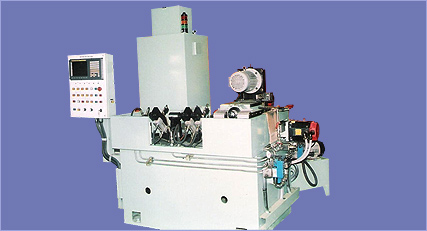

  2 AXIS CNC CRANKSHAFT KEYWAY MILLING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 2004 – 2005
COMPONENT Crankshaft
OPERATION parallel or Woodruff Key on Crankshaft shank
TOOL

HSS End Milling Cutter & Woodruff Cutter
Slot Width Tolerance of 0.015 mm.

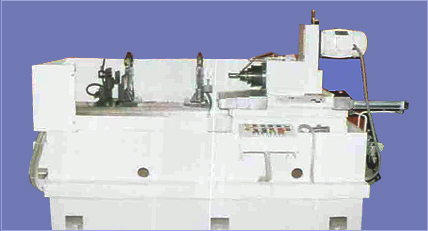

  CRANKSHAFT FINE BORING MACHINE




CUSTOMER Mahindra Steel & Automation Ltd., Pune
YEAR 2005 – 2006
COMPONENT Crankshaft
OPERATION Fine Boring of Crankshaft Flange End Bore.
TOOL

Adjustable Fine Boring Cutter with Carbide insert.
Bore dia. tolerance 0.015 mm & runout within 0.030 mm.

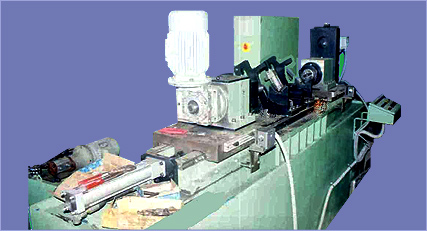

  CRANKSHAFT FINE BORING & TAPPING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 2005 – 2006
COMPONENT Crankshaft
OPERATION Simultaneous Fine Boring on Flange End & Tapping on Gear End.
TOOL

Fine Boring Tool & HSS Tap.

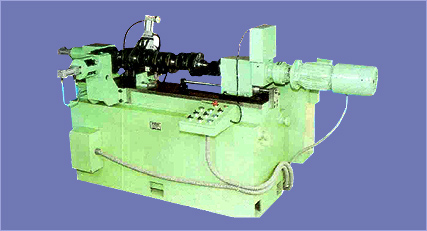

  CRANKSHAFT KNURLING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 1998 – 1999
COMPONENT Crankshaft
OPERATION Knurling of Flange
TOOL

Knurling Tool
