CRANKSHAFT JOURNAL , PIN & FLANGE OPERATION MACHINES

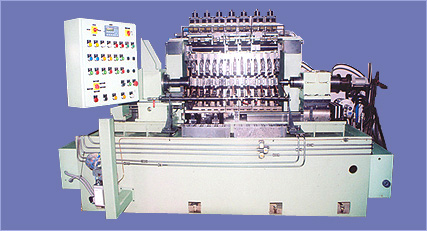

CRANKSHAFT SUPERFINISHING MACHINE




CUSTOMER Kirloskar Oil Engines Ltd., Pune
YEAR 2005 – 2006
COMPONENT 2, 3, 4, 6 Cyl. Crankshafts
OPERATION Simultaneous Superfinishing of Flange, Pins & Journals.
TOOL

Abrasive Superfinishing Tape
Surface Finish 0.10 Ra, depending on component input condition.

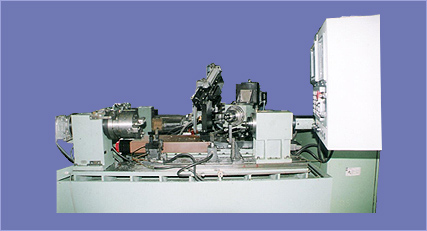

3 AXIS CNC CRANKSHAFT IOH DRILLING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 2004 – 2005
COMPONENT Crankshaft
OPERATION Inclined Oil Holes Drilling on Pins.
TOOL

HSS Drill

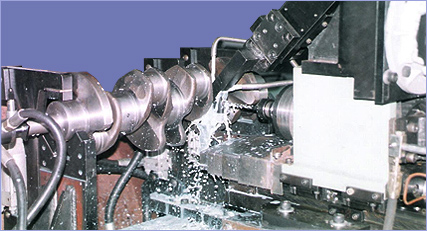

  2 AXIS CNC CRANKSHAFT SOH DRILLING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 2004 – 2005
COMPONENT Crankshaft
OPERATION Straight Oil Holes Drilling on Journals
TOOL

Drill

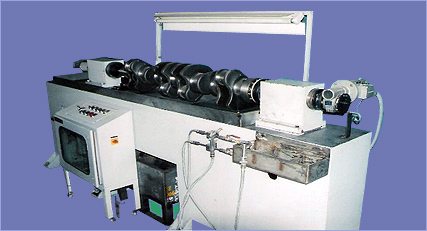

  CRANKSHAFT BURN TESTING MACHINE




CUSTOMER Bharat Forge Ltd., Pune
YEAR 2004 – 2005
COMPONENT Crankshaft
OPERATION inspection of Crankshaft for Burn Marks.
TOOL






  CRANKSHAFT FILLET ROLLING MACHINE
